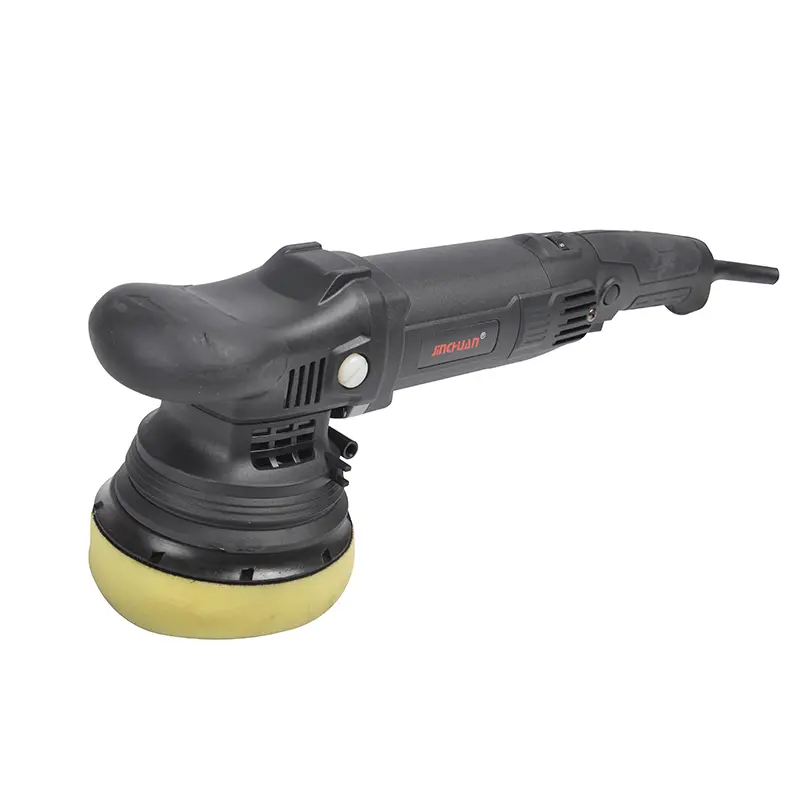

When choosing a professional-grade track polishing machine, among many technical parameters, “eccentricity” is a crucial yet often misunderstood indicator. It directly determines the polishing efficiency, finish (surface finish quality) and operational comfort of the equipment. Although there are various designs on the market ranging from zero (pure rotation) to large eccentricities (such as 8mm or more), after engineering verification, the eccentricity range of 3mm to 5mm is widely regarded as the gold standard for achieving an ideal balance between stability and cutting force. This article will delve deeply into the engineering principles behind it, providing you with a solid technical basis in your procurement decisions.
Understanding Eccentricity: The “Moving Heart” of Polishing Machines
Eccentricity, in simple terms, refers to the physical distance between the center of the drive shaft (main shaft) of the polishing machine and the center of the polishing pad mounting plate (output shaft). This tiny displacement design is the root cause of “orbital” motion.
When the machine starts, the motor drives the mounting plate not only to rotate but also to swing at high speed along a circular trajectory concentric with the main shaft (i.e., “track” motion). Therefore, the value of the eccentricity directly defines the diameter of this small circular trajectory. A 5mm eccentricity means that the center of the polishing pad is moving at high speed along a circular path with a diameter of 10mm.
Stability First: How does a 3-5mm eccentricity overcome the core challenge of polishing
The core challenge of polishing operations lies in managing the heat generated by friction and eliminating surface defects. Unstable movement can lead to uneven heat distribution, the formation of vortex patterns, and intensify operator fatigue. The 3-5mm eccentricity design is precisely created to address these challenges.
1.Effectively suppress rotational torque and enhance maneuverability
A purely rotating polishing machine (with an eccentricity of 0) generates a powerful rotational torque. Especially when in contact with the paint surface, it demands extremely high physical strength from the operator. The machine is prone to losing control and poses a risk of damaging the paint surface. When a moderate eccentricity (such as 3mm) is introduced, the rotational movement of the polishing pad is disrupted and neutralized by the “track” movement. This significantly reduces the rotational speed of the polishing pad itself, thereby greatly weakening the reaction torque transmitted to the operator. The operator does not need to “struggle” with the machine and can apply uniform pressure more easily to achieve precise control, which is crucial for handling curved surfaces and edge areas.
2. Optimized trajectory overlap rate, eliminating vortex patterns
Vortex patterns are the archenemy of polishing operations, usually caused by random and irregular abrasive paths. An eccentricity of 3-5mm creates a highly controllable and predictable motion pattern. Under the uniform movement of the machine, each revolution cycle of the polishing pad will have an extremely high overlap rate with the path of the previous cycle.
You can imagine it as using a writing brush to paint a flat surface in tiny circles – the smaller and denser the circles, the higher the uniformity of the final coverage. This dense and uniform path coverage ensures that the abrasive’s cutting effect on the paint surface is consistent, fundamentally avoiding the micro-scratches caused by local excessive grinding, which is the vortex pattern we see.
3. Ideal heat distribution and cutting efficiency balance
Eccentricity directly affects heat concentration and material removal rate:
Too small eccentricity (<3mm) : The motion trajectory is too compact, closer to the rotational mode. Although it can improve the finish, the heat dissipation area is small, it is easy to generate local hotspots, and the cutting efficiency is relatively low.
Excessive eccentricity (>5mm) : The machine’s swing amplitude increases. Although it can enhance the initial cutting speed, it will sacrifice stability. Large swings are more likely to cause “jumping marks” on the paint surface, especially when dealing with uneven surfaces. At the same time, an overly long movement trajectory may also cause the machine to vibrate more intensely at high speeds, affecting the operational comfort and finish quality.
An eccentricity of 3-5mm is precisely at the perfect balance point: it provides a large enough swing to disrupt the rotational force and achieve effective material cutting, while maintaining a compact enough trajectory to ensure uniform heat diffusion and excellent surface quality.
The subtle differences in choices in different scenarios
Within the golden range of 3-5mm, even minor adjustments reflect the targeted nature of the design:
3mm leans towards fine finishing and mirror finish: The more compact track movement brings an extremely smooth and almost seamless polishing experience, making it an ideal choice for achieving ultra-high gloss in the final stage.
5mm strikes a balance between efficiency and versatility: It offers a stronger initial cutting force, enabling the removal of moderate scratches more quickly. Meanwhile, with its inherent stability, it still achieves an excellent finish effect, making it highly suitable for full-process polishing.
Conclusion: The wise choice for robust engineering
In conclusion, the adoption of an eccentricity of 3-5mm in the track polishing machine is not accidental but rather the result of careful consideration based on physics, ergonomics, and surface treatment science. It represents the best balance that engineers have found among raw cutting force, ultimate stability and operator comfort.
For users who pursue outstanding polishing effects and professional workflows, understanding this core design parameter is the first step in choosing a key tool that can continuously produce perfect paint surfaces while minimizing operational fatigue and risks. When you choose a polishing machine with an eccentricity design within this range, you are choosing reliability and efficiency derived from robust engineering.
