Shockproof standards for shipping packaging: How can Angle grinders/electric hammers maintain their intact condition during transportation?
In the supply chain of power tools, we often encounter a link that is easily underestimated – transport packaging. Especially for products like Angle grinders and electric hammers that have both precision motors and vulnerable parts, a slight mistake may lead to the risk of rework or even returns on the way from the factory to the customer’s warehouse. Many purchasers care about power, torque and rotational speed, but often only realize the importance of packaging for the first time when it comes to the transportation loss rate.
Having been engaged in B2B procurement for so many years, we are well aware that shipping packaging is not as simple as “putting on a cardboard box”. It is actually the first production line for product protection and a crucial link in safely delivering the factory’s quality achievements to customers. Especially for long-distance freight transportation with frequent vibrations and shocks, a packaging solution that meets shockproof standards can significantly reduce common transportation problems such as the displacement of Angle grinder gearboxes and the breakage of the front end pins of electric hammers.

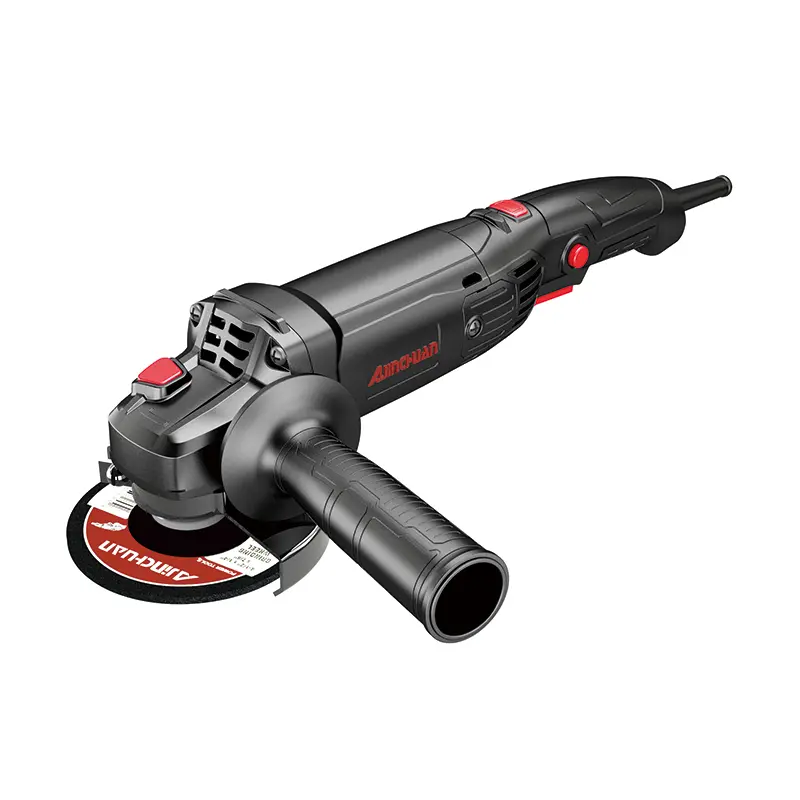

Let’s start with the Angle grinder. Its main shaft and gear set have high precision. Even a slight displacement will affect the dynamic balance, causing abnormal vibration during use. The most feared situations during transportation are heavy stacking pressure and sudden braking impact. If the inner lining lacks a positioning structure, the machine body will slide inside the box, and the shaft end will hit the hard edge or be cut into by the sharp corners of other boxes. Usually, we adopt a high-density EPE bracket formed in one piece to firmly lock the machine body in the fixed cavity, and add shaping foam at the grinding disc installation port to prevent accidental force from squeezing the shell. The corrugation direction of the outer box has also been adjusted, providing better longitudinal load-bearing capacity and dispersing the stress caused by the superimposition of upper and lower layers.
The structure of the electric hammer is more complex. Besides the motor and gears, it also has a telescopic drill pipe sleeve and a shock-absorbing spring assembly. If during transportation, the packaging only considers the hardness of the outer shell and neglects the filling of the internal gap, the drill pipe may repeatedly collide with the inner wall during shaking. Over time, the retaining ring may become loose or the thread may be slightly damaged. When designing the packaging for the electric hammer, we will keep the telescopic part in a semi-extended and fixed state, use elastic limit blocks to restrict the stroke, and at the same time, set up multi-directional buffer pads around the machine shell. In this way, no matter whether the truck turns or falls during loading and unloading, the force will be absorbed layer by layer.
Many people think that adding more layers of bubble wrap is “shockproof”, but that’s not the case. The core of the shockproof standard is to match the quality, center of gravity and vulnerable points of the product and provide targeted mechanical path guidance. For instance, if the center of gravity of an Angle grinder is relatively forward, additional support should be provided on the front bracket, while buffer space should be reserved at the rear end. The handle of the electric hammer is a position that the operator often holds and is also a place that is prone to being pressed during transportation. The protective pad here should not only be thick but also have anti-slip texture to prevent displacement inside the box.
Another often overlooked detail is the sealing method and the fixation of the pallet. Sea or rail freight transportation is often accompanied by changes in temperature and humidity. If the sealing glue is not evenly adhered or the pallet straps are too tight, hidden creases may occur inside the cartons, increasing the risk of breakage during bumpy transportation. Our approach is to first reinforce the four corners of the box with I-shaped or cross-shaped sealing, and then fix the entire pallet with adjustable tension stretch film to ensure that there will be no concentrated impact due to sliding when stacking multiple layers.
For B2B purchasing customers, transportation damage not only means the trouble of returns and exchanges, but also disrupts on-site construction or sales distribution plans. Especially for engineering companies and chain building materials merchants that place bulk orders for Angle grinders or electric hammers, once the damage rate of a batch of goods is relatively high, both the replacement cycle and human resource scheduling will be affected. For this reason, we have specially set up a packaging testing section at the end of the production line. We run the entire process using simulated drops and vibration tables to ensure that the products remain in good condition whether they are transported by air as small items or by sea as full pallets.
Ultimately, the shockproof design of the packaging is not an additional burden, but a sincere extension of the quality commitment to the moment the customer receives the goods. For purchasers who value long-term cooperation, a power tool supplier that can stand the test of transportation in details often means more stable delivery and fewer on-site troubles. After all, what construction sites and stores want are equipment that can be used immediately and operate smoothly, rather than Angle grinders with main shafts repaired first upon arrival or electric hammers with pins replaced.
If you are willing to take a closer look at the packaging process of suppliers when evaluating them, you may find that the protective details that remain “silent and guarded” during transportation are precisely the dividing line that distinguishes ordinary suppliers from reliable partners.
